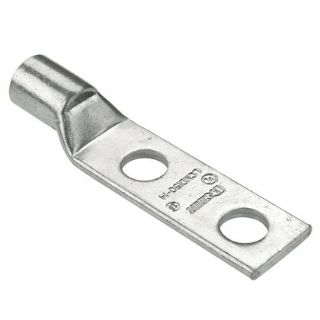

LCMD240-10CD-5 PAN

Name: LCMD240-10CD-5 PAN
Brand: Panduit
SKU: LCMD240-10CD-5 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMD240-10CD-5

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

Panduit®, LCMD240-10CD-5, Lug Compression Connector, 2-Hole Type LCMD-CD Metric, Rigid Stranded Copper Conductor, 240 sq-mm Conductor, Die Code: P87, 35 kV, M10 Stud, Slotted Straight Tongue, 37.5 mm W x 5.3 mm THK Tongue, 111.5 mm Overall Length, Standard Barrel, 20.8mm ID x 26 mm OD x 35 mm L Barrel, Specifications: 22 mm Stud Hole Spacing, 36.5 mm L Wire Strip, 90 deg C

Application

For use with class 2 stranded copper conductors

Standards

Features

Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Product information marked on connector for selection and installation
Internally beveled wire entry for fast and easy installation
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® tools and dies

Specifications

Barrel Size:	20.8 mm ID x 26 mm OD x 35 mm L
Barrel Type:	Standard
Conductor Size:	240 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Die Code:	P87
Material:	Tin Plated Copper
Mounting Hole Size:	11 mm
Overall Length:	111.5 mm
Series:	LCMD
Specifications:	21 mm Wrench Clearance, 22 to 25 mm Hole Spacing, 36.5 mm L Wire Strip
Stud Size:	M10
Temperature Rating:	90 deg C
Tongue Size:	37.5 mm W x 5.3 mm THK
Tongue Type:	Slotted Straight
Voltage Rating:	35 kV
