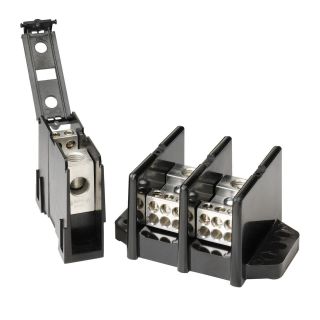

Actual Product May Vary From Image

LD2580-3DIN LIT

Name: LD2580-3DIN LIT
Brand: Littelfuse
SKU: LD2580-3DIN LIT
Price: 130.82 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® POWR-BLOKS™ LD2580-3DIN LD Series Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Thermoplastic

Manufacturer: Littelfuse

Manufacturer part number: LD2580-3DIN

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$130.82

Qty:

Product Details

Brand Name

Littelfuse®

Description

POWR-BLOKS™ power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN rail mount and an optional hinged safety cover.

Littelfuse® POWR-GARD® POWR-BLOKS™ Power Distribution Block, Series: LD Series, 600 VAC, 175 A, 3 Pole, 1 Primary Connections, 6 Secondary Connection, 14 to 2/0 AWG Wire, 100 kA Short Circuit Current Rating, Thermoplastic, Black, 2.4 in H x 3 in W x 2.5 in D

Application

For anywhere power needs to be distributed to more than one load

Standards

UL Listed | UL Recognized | CSA Certified

Features

Fixing junction tap off point
DIN rail mount
14 to 2/0 AWG line, 14 to 4 AWG load
(1) box lug primary, (6) box lug secondary

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	US
Dimensions:	2.4 in H x 3 in W x 2.5 in D
Material:	Thermoplastic
Number of Poles:	3
Primary Connections/Pole:	1
Secondary Connection/Pole:	6
Series:	LD Series
Short Circuit Current Rating:	100 kA
Voltage Rating:	600 VAC
Wire Size:	14 to 2/0 AWG
