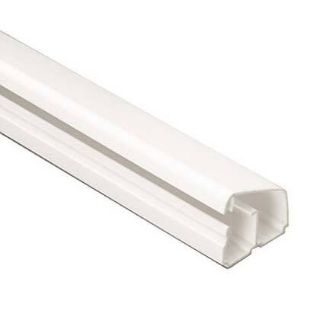

LD2P10IG8-A PAN

Type LD2P10 non-metallic two channel, one-piece tamper resistant latch design, adhesive backed, hinged cover surface raceway shall be used to route, protect and conceal low voltage data, voice, fiber optic and power cabling. The raceway shall be listed as suitable for use in applications having up to 600 VAC between conductors by Underwriters Laboratories Inc per standard 5A and by Canadian standards Associations per C22.2 No. 62.1-03 when installed per instructions. The raceway includes a full complement of bend radius control (BRC) fittings consisting of, but not limited to: elbows, (internal and external), couplings for joining raceway sections, blank end fittings for closing open ends of the raceway, entrance end fittings, reducer fittings, tee fittings and an optional raceway installation tool. The BRC fittings shall incorporate a minimum of 1 in bend radius as recommended for Cat 6 UTP and fiber optic cabling in TIA/EIA 569-B. This non-metallic surface raceway shall be manufactured in two standard lengths from impact resistant material with a flammability rating of UL 94-V-0. The non-metallic raceway finish shall be pure color, resist scratches and dents and not peel or corrode. The raceway shall be available in four standard colors and shall be optimized for use with Panduit® PanNet™ network cabling systems.

Panduit®, LD2P10IG8-A, Surface Raceway, 1-Piece Non-Metallic, Series: LD2P10, 8 ft Length, 38.5 mm Width, 21.9 mm Height, 600 VAC, 2 Channels, Adhesive Back, Hinged Cover, Surface Mounting, PVC, International Gray
