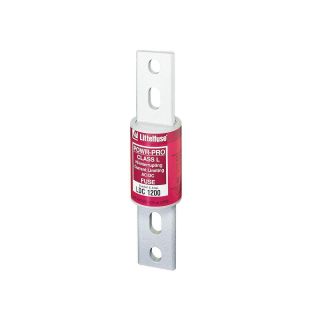

Actual Product May Vary From Image

LDC200 LIT

Name: LDC200 LIT
Brand: Littelfuse
SKU: LDC200 LIT
Price: 2,135.60 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® POWR-PRO® LDC200 Current Limiting Fast Acting Fuse, 200 A, 600 VAC/VDC, 50/200 kA Interrupt, L Class, Cartridge/Cylindrical Body

Manufacturer: Littelfuse

Manufacturer part number: LDC200

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,135.60

Qty:

Product Details

Brand Name

Littelfuse®

Type

Current Limiting

Description

Littelfuse® POWR-PRO® LDC series class L fuses represent another first in fuse protection. LDC series fuses are the first UL listed 600 VAC/VDC class L fuse. Since they may be used for both AC and DC, they eliminate the concern that AC only fuses may be inserted into DC circuits. While LDC series fuses UL listed DC interrupting rating is more than adequate for most applications (50000 A at a 16 ms time constant), tests in our high power testing laboratory have shown that this remarkable fuse is capable of performing at much longer time constants. This makes the fuse uniquely suited for such applications as crane rail circuits and mass transit systems.

Littelfuse® POWR-GARD® POWR-PRO® Fast Acting Fuse, Current Limiting, Series: LDC, Non-Indicating, 200 A, 600 VAC/VDC, 50/200 kA Interrupt, Class: L, Blade Terminal, Bolt-In Mounting, Cartridge/Cylindrical Body, Melamine, 2-1/2 in Dia x 8-5/8 in L Body

Application

Inverters/UPS/DC Distribution

Standards

UL Listed | CSA Certified | Standard 248-10 | UL Recognized | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

600 VAC/VDC rated, all purpose class L fuse reduces inventory requirements because the need for special fuses is eliminated
UL Listed 200000 A AC - 50000 A DC - reliable interruption of all overcurrents upto their ratings, minimizes the need for time consuming and expensive short circuit studies
Moderate time delay - four seconds time delay at 500% current provides adequate time delay for many AC applications and most DC applications
200 kA at 600 VAC, 50 kA at 600 VDC interrupt rating

Specifications

Amperage Rating:	200 A
Body Size:	2-1/2 in Dia x 8-5/8 in L
Body Type:	Cartridge/Cylindrical
Class:	L
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50/200 kA
Material:	Melamine
Mounting Type:	Bolt-In
Series:	LDC
Terminal Type:	Blade
Voltage Rating:	600 VAC/VDC
