LDPH10IG6-A PAN

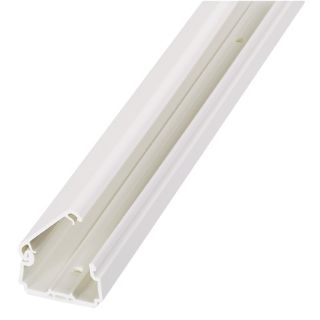

Picture of LDPH10IG6-A PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LDPH10IG6-A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5.62 / FT
This product has a minimum quantity of 6

Description

Brand Name

Panduit®

Type

2-Piece Latching Power Rated Tamper-Resistant

Description

LDPH non-metallic series is a power rated, single channel, pre-assembled two-piece hinged cover design surface raceway. It shall be suitable for use in applications up to 600 VAC, shall include adhesive backing and shall be made of impact resistant material with a smooth finish that shall not scratch, peel or corrode. The raceway shall include an assortment of bend radius and standard fittings that complement the offering to help route, protect and conceal power or low voltage cabling. LDPH raceway shall be available in three sizes and four standard colors that shall be optimized for use with the Panduit® PanNet™ communication system.
Panduit®, LDPH10IG6-A, Surface Raceway, 2-Piece Non-Metallic Power Rated, Series: LDPH, 6 ft Length, 39 mm Width, 22 mm Height, 600 VAC, 1 Channels, Adhesive Back, Hinged Cover, 0 to 50 deg C, Surface/Threaded Mounting, PVC, International Gray

Application

For routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings, schools, hospitals, offices, homes or anywhere a small, secure and low profile raceway is needed

Standards

ARRA Compliant | Buy American Act Compliant | CE Marking | CSA C22.2 No. 62.1-03 | cULus Listed | FT-4 Rated | NEC Article 388 | RoHS Compliant | TIA/EIA Certified | UL 5A File No. 95425 | UL 94 V-0 Flammability Rated

Features

  • Pre-assembled 2-piece hinged cover design
  • 1 in bend radius fittings
  • Highly tamper resistant
  • Supplied with pre-punched mounting holes and factory applied adhesive tape
  • Non-slip liner cover, keeps cover from sliding when in an open position

Specifications

Back Type:Adhesive
Color:International Gray
Country of Origin:US
Cover Type:Hinged
Height:22 mm
Length:6 ft
Material:PVC
Mounting Type:Surface/Threaded
Number of Channels:1
Series:LDPH
Temperature Rating:0 to 50 deg C
Voltage Rating:600 VAC
Width:1.52 in
