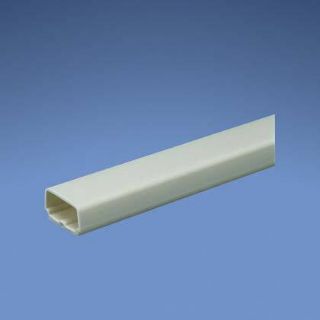

LDS3WH10-A PAN

Name: LDS3WH10-A PAN
Brand: Panduit
SKU: LDS3WH10-A PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LDS3WH10-A

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 100

Description

Brand Name

Panduit®

Type

1-Piece Non-Metallic Power Rated

Description

LDS non-metallic surface raceway will be a one-piece, solid raceway used to route, protect and conceal data network, voice or power cabling. The raceway shall be listed as suitable for use in applications having up to 600 VAC between conductors by Underwriters Laboratories Inc. Per standard 5A when screw secured with mounting straps and per installation instructions. The raceway shall be manufactured from impact resistant material with flammability rating of UL 94-V-0. A full complement of power, 1 in bend radius control and standard snap on fittings must be available. All fittings and boxes shall be tamper resistant to prevent unauthorized access to cables. LDS raceway finish shall be pure color and will resist scratches and dents and will not peel or corrode.

Panduit®, LDS3WH10-A, Surface Raceway, 1-Piece Non-Metallic Power Rated, Series: 3/LDS, 10 ft Length, 19.6 mm Width, 10.4 mm Height, 600 VAC, 1 Channels, Adhesive Back, Non-Hinged Cover, Surface Mounting, PVC, White

Application

For routing of power or low voltage data and fiber optic cabling along perimeter walls

Standards

Features

Tamper resistant design
Only non-metallic bendable raceway
Standard and power rated fittings
Supplied with pre-applied adhesive backed tape

Specifications

Back Type:	Adhesive
Cable Type:	Coaxial/Data Grade/Electrical/Fiber Optic
Color:	White
Country of Origin:	US
Cover Type:	Non-Hinged
Height:	0.41 in
Length:	10 ft
Material:	PVC
Mounting Type:	Surface
Number of Channels:	1
Series:	3/LDS
Voltage Rating:	600 VAC
Width:	0.77 in
