LF2 MDL2 .39X.47 RSB BE LOV

Name: LF2 MDL2 .39X.47 RSB BE LOV
Brand: Lovejoy
SKU: LF2 MDL2 .39X.47 RSB BE LOV
Availability: OutOfStock

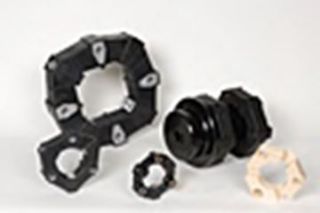

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514451617

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Shaft to Shaft

Description

The complete LF Series model 2 is comprised of a cylindrical hub, a flanged hub, a base element and hardware. The model 2 provides a complete shaft to shaft coupling in a range of sizes for all industrial power transmission applications. It is similar to model 1, except a flanged hub is added to make the shaft to shaft connection. Model 2/S allows the drive package to be "blind" connected. As with all S-style models, axial end float of equipment shafts can be accommodated without harmful push pull force.

Lovejoy® Torsional Complete Coupling, Shaft to Shaft, Series: LF Series, 0.44 in Bore, 3.35 in OD, 2.36 in Overall Length, 1.57 in Dia Hub, 1.1 in Length Through Bore, 180 in-lb Nominal/530 in-lb Maximum Torque, 8000 rpm Maximum, 1.57 in Dia Shaft Connection, -40 to 194 deg F, Rubber, Metallic

Standards

Features

Wide range of standard designs and materials
Application versatility
Shaft to shaft or flywheel to shaft designs
Designed to accommodate substantial shock loads, vibration and misalignment
Low moment of inertia
Electrically insulating
No lubrication, maintenance-free
Unique air-flow cooling design
Different element stiffness values allow for torsional tuning of applications with diesel engines
Economic design allows for cost effective solutions for torsional applications
Proven L-LOC spline clamping hub virtually eliminates spline shaft profile wear and "fretting"
Oil, heat and corrosion-resistant elements (Hytrel®, Zytel®)
When used with S-bolts, the coupling can accommodate some end float
S-bolts accommodate applications requiring "blind" assembly
Model 6 unique spacer designs span gaps between equipment in excess of the normal equipment separation

Specifications

Bore Diameter:	0.44 in
Country of Origin:	US
Finish:	Metallic
Hub Size:	1.57 in Dia
Length Through Bore:	1.1 in
Material:	Rubber
Maximum Speed:	8000 rpm
Outside Diameter:	3.35 in
Overall Length:	2.36 in
Series:	LF Series
Shaft Connection:	1.57 in Dia
Temperature Rating:	-40 to 194 deg F
Torque Rating:	180 in-lb Nominal/530 in-lb Maximum
