LFC60060-3CID LIT

Name: LFC60060-3CID LIT
Brand: Littelfuse
SKU: LFC60060-3CID LIT
Price: 136.56 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFC60060-3CID

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$136.56 / EA

Description

Brand Name

Littelfuse®

Description

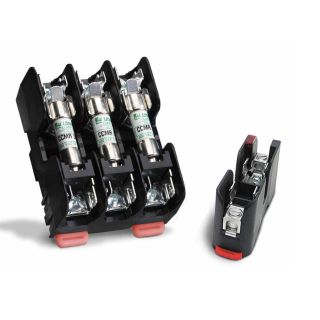

The Littelfuse® class CC, CD and midget blocks offer generous space savings and enhanced value. DIN rail mounting and universal mounting holes are available as well as an indication feature on all class CD fuse blocks.

Littelfuse® POWR-GARD® Fuse Block, Series: LF Series, 600 VAC/VDC, 60 A, 3 Pole, Class: CC/CD, Box Lug, 14 to 6 AWG Wire, DIN Rail Mount, 1.496 in Fuse Length, 0.406 in Fuse Dia, 125 deg C, Thermoplastic, 3.7 in H x 3.25 in W x 1.95 in D

Standards

UL File No. E14721 | CSA File No. LR7316 | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Space saving design
Universal mounting holes for easy replacement
Indication offered on CD blocks
Rejection feature that prevents the insertion of fuses with lower interrupting rating or voltage ratings
Clip design reduces resistance and heat
Non-DIN rail fuse blocks have interlocking feature allowing ganging for any number of poles
Copper lug

Specifications

Amperage Rating:	60 A
Class:	CC/CD
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	3.7 in H x 3.25 in W x 1.95 in D
Fuse Diameter:	0.406 in
Fuse Length:	1.496 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	LF Series
Temperature Rating:	125 deg C
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 6 AWG
