LFD2570-3 LIT

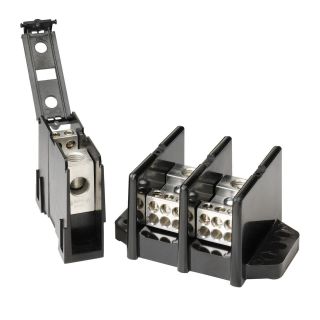

Picture of LFD2570-3 LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
LFD2570-3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$140.60 / EA

Description

Brand Name

Littelfuse®

Type

Splicer Terminal

Description

POWR-BLOKS™ power distribution and splicer blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. Blocks have one or two primary inputs, with up to twelve secondary outputs per pole. The number of poles available ranges from one to four.
Littelfuse®, LFD2570-3, Power Distribution Block, Splicer Terminal, Series: LD Series, 600 VAC, 175 A, 3 Pole, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 14 to 2/0 AWG Wire, Fast Acting Fuse, 200 kA Short Circuit, Thermoplastic, 5.38 in L x 3.38 in W x 2.9 in H Dimensions

Application

For anywhere power needs to be distributed to more than one load applications

Standards

UL Recognized | UL File No. E171395 | CSA Certified | CSA File No. LR700111 | 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer | UL94 V-0/UL E171395 | LFD/LFS E309688 | CSA LR700111/LFD/LFS 007316_0_000 | UL E482231 | RoHS Compliant

Features

  • Bolt-in mount
  • Two thread cutting screws are furnished for each cover
  • Covers are slotted for easy installation
  • (1) 14 to 2/0 AWG line, (4) 14 to 4/0 AWG load rated wire range
  • (1) box lug primary, (4) box lug secondary

Specifications

Amperage Rating:175 A
Country of Origin:CN
Dimensions:5.38 in L x 3.38 in W x 2.9 in H
Fuse Type:Fast Acting
Material:Thermoplastic
Number of Poles:3
Primary Connections/Pole:1
Secondary Connection/Pole:4
Series:LD Series
Short Circuit Current Rating:200 kA
Voltage Rating:600 VAC
Wire Size:14 to 2/0 AWG
