LFH25030-2P LIT

Name: LFH25030-2P LIT
Brand: Littelfuse
SKU: LFH25030-2P LIT
Price: 37.32 USD
Availability: OutOfStock

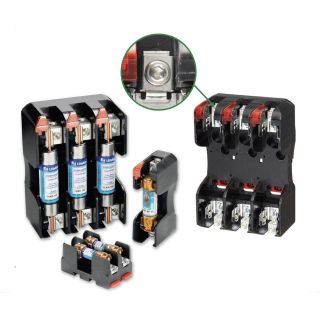

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFH25030-2P

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$37.32 / EA

Description

Brand Name

Littelfuse®

Description

The new Littelfuse® class H blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate A rejection feature, which only allows class R fuses to be inserted.

Littelfuse® POWR-GARD® Fuse Block, Series: LFH, 250 VAC, 30 A, 2 Pole, Class: H, Pressure Plate Connection, 14 to 10 AWG Wire, Bolt-In/DIN Rail Mounting, 125 deg C, For Use With: NLN Series Fuse, 1.91 in W x 1.58 in D x 3.01 in H Dimensions

Standards

UL File No. E14721 | CSA File No. LR7316 | CSA Recognized | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Universal mounting holes for easy replacement
Indication offered on most 250 and 600 VAC versions
DIN rail releasable for all non-knife blade style fuses
Reinforced fuse clips are standard on all class H and class R fuse blocks
Only 1-hand is required to release from DIN rail (lock open lock closed)
Clip designs maximize electrical contact and minimize heat rise

Specifications

Amperage Rating:	30 A
Class:	H
Connection Type:	Pressure Plate
Country of Origin:	CN
Dimensions:	1.91 in W x 1.58 in D x 3.01 in H
Mounting Type:	Bolt-In/DIN Rail
Number of Poles:	2
Series:	LFH
Suitable For Use With:	NLN Series Fuse
Temperature Rating:	125 deg C
Voltage Rating:	250 VAC
Wire Size:	14 to 10 AWG
