LFH25060-2CID LIT

Name: LFH25060-2CID LIT
Brand: Littelfuse
SKU: LFH25060-2CID LIT
Price: 63.14 USD
Availability: OutOfStock

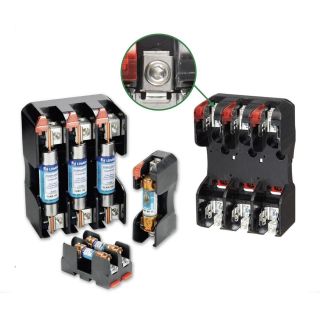

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFH25060-2CID

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$63.14 / EA

Description

Brand Name

Littelfuse®

Type

Indicating

Description

The new Littelfuse® class H blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate A rejection feature, which only allows class R fuses to be inserted.

Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFH, 250 VAC, 60 A, 2 Pole, Class: H, Box Lug Connection, 4 to 2 AWG, 14 to 6 AWG Wire, DIN Rail Mounting, 125 deg C, For Use With: NLN Series Fuse, Thermoplastic, 4.92 in L x 2.78 in W x 2.26 in H Dimensions

Standards

UL Listed | CSA Certified | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Universal mounting holes for easy replacement
Only 1-hand is required to release from DIN rail (lock open lock closed)
Reinforced fuse clips are standard on all class H and class R fuse blocks
<0.6 mA at 600 VAC leakage current
10 kA rms symmetrical withstand rating
Clip designs maximize electrical contact and minimize heat rise
DIN rail releasable for all non-knife blade style fuses
Lead-free
Indication offered on most 250 and 600 VAC versions

Specifications

Amperage Rating:	60 A
Class:	H
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	4.92 in L x 2.78 in W x 2.26 in H
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	2
Series:	LFH
Suitable For Use With:	NLN Series Fuse
Temperature Rating:	125 deg C
Voltage Rating:	250 VAC
Wire Size:	4 to 2 AWG, 14 to 6 AWG
