LFJ60030-2PID LIT

Name: LFJ60030-2PID LIT
Brand: Littelfuse
SKU: LFJ60030-2PID LIT
Price: 95.34 USD
Availability: OutOfStock

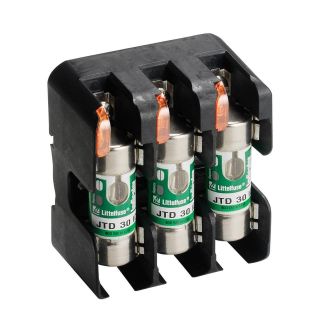

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFJ60030-2PID

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$95.34 / EA

Description

Brand Name

Littelfuse®

Type

Indicating

Description

The Littelfuse® 600 VAC class J blocks offer generous space savings and enhanced value Over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.

Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFJ, 600 VAC, 30 A, 2 Pole, Class: J, Pressure Plate Connection, 14 to 10 AWG Copper Wire, Bolt-In/DIN Rail Mounting, 2.252 in Fuse Length, 0.811 in Diameter Fuse, 125 deg C, For Use With: JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse, Black, 2.2 in W x 1.95 in D x 3.7 in H Dimensions

Standards

UL File No. E14721 | CSA File No. LR7316 | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Indication offered on all versions except 200 to 600 A
DIN rail releasable for all non-knife blade style fuses
Only 1-hand is required to release from DIN rail (lock open lock closed)
Phenolic blocks have side barriers for isolation
Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocks
Universal mounting holes make for easy replacement
Space saving design upto 45% smaller than existing blocks
Solid/stranded wire

Specifications

Amperage Rating:	30 A
Class:	J
Color:	Black
Connection Type:	Pressure Plate
Country of Origin:	CN
Dimensions:	2.2 in W x 1.95 in D x 3.7 in H
Fuse Diameter:	0.811 in
Fuse Length:	2.252 in
Mounting Type:	Bolt-In/DIN Rail
Number of Poles:	2
Series:	LFJ
Suitable For Use With:	JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse
Temperature Rating:	125 deg C
Voltage Rating:	600 VAC
Wire Size:	14 to 10 AWG Copper
