LFJ60200-3C LIT

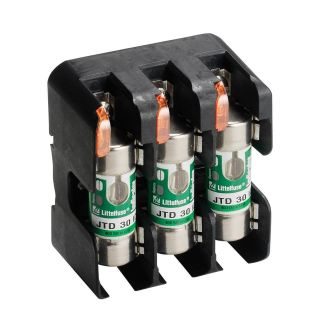

Picture of LFJ60200-3C LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
LFJ60200-3C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,129.36 / EA

Description

Brand Name

Littelfuse®

Alternate Supplier #

Grainger - 6MUN3

Description

The Littelfuse® 600 VAC class J blocks offer generous space savings and enhanced value Over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.
Littelfuse® POWR-GARD® Fuse Block, Series: LFJ, 600 VAC, 200 A, 3 Pole, Class: J, Box Lug Connection, 6 AWG to 250 kcmil Wire, DIN Rail Mounting, 5.752 in Fuse Length, 1-1/2 in Diameter Fuse, 130 deg C, For Use With: JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse, Thermoplastic, 6.13 in L x 8 in W x 2.85 in H Dimensions

Standards

UL Listed | CSA Certified | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

  • Space saving design upto 45% smaller than existing blocks
  • Universal mounting holes for easy replacement
  • Only 1-hand is required to release from DIN rail (lock open lock closed)
  • Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocks
  • <0.6 mA at 600 VAC leakage current
  • Lead-free
  • Phenolic blocks have side barriers for isolation
  • Indication offered on all versions except 200 to 600 A
  • DIN rail releasable for all non-knife blade style fuses
  • Covers available for 100 a and lower to enhance safety

Specifications

Amperage Rating:200 A
Class:J
Connection Type:Box Lug
Country of Origin:CN
Dimensions:6.13 in L x 8 in W x 2.85 in H
Fuse Diameter:1-1/2 in
Fuse Length:5.752 in
Material:Thermoplastic
Mounting Type:DIN Rail
Number of Poles:3
Series:LFJ
Suitable For Use With:JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse
Temperature Rating:130 deg C
Voltage Rating:600 VAC
Wire Size:6 AWG to 250 kcmil

Products Specifications

Brand Name
Littelfuse
Class
Class J
Type
Fuse Block
