LFJ60400-1C LIT

Name: LFJ60400-1C LIT
Brand: Littelfuse
SKU: LFJ60400-1C LIT
Price: 772.24 USD
Availability: OutOfStock

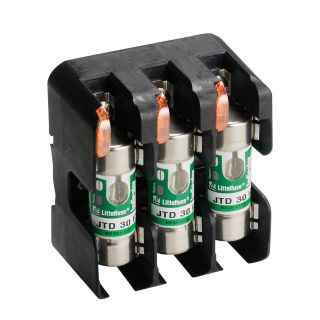

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFJ60400-1C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$772.24 / EA

Description

Brand Name

Littelfuse®

Description

The Littelfuse® 600 VAC class J blocks offer generous space savings and enhanced value Over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.

Littelfuse® POWR-GARD® Fuse Block, Series: LFJ, 600 VAC, 400 A, 1 Pole, Class: J, Box Lug Connection, 1/0 AWG to 350 kcmil Wire, DIN Rail Mounting, 7.126 in Fuse Length, 2 in Diameter Fuse, 130 deg C, For Use With: JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse, Thermoplastic, 10 in L x 3 in W x 3.32 in H Dimensions

Standards

UL Listed | CSA Certified | UL 94 V-0 Flammability Rating

Features

Space saving design upto 45% smaller than existing blocks
Universal mounting holes for easy replacement
Only 1-hand is required to release from DIN rail (lock open lock closed)
Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocks
<0.6 mA at 600 VAC leakage current
Lead-free
Phenolic blocks have side barriers for isolation
Indication offered on all versions except 200 to 600 A
DIN rail releasable for all non-knife blade style fuses
Covers available for 100 a and lower to enhance safety

Specifications

Amperage Rating:	400 A
Class:	J
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	10 in L x 3 in W x 3.32 in H
Fuse Diameter:	2 in
Fuse Length:	7.126 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	1
Series:	LFJ
Suitable For Use With:	JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse
Temperature Rating:	130 deg C
Voltage Rating:	600 VAC
Wire Size:	1/0 AWG to 350 kcmil
