Actual Product May Vary From Image

LFPSJ30-3ID LIT

Name: LFPSJ30-3ID LIT
Brand: Littelfuse
SKU: LFPSJ30-3ID LIT
Price: 207.36 USD
Availability: InStock

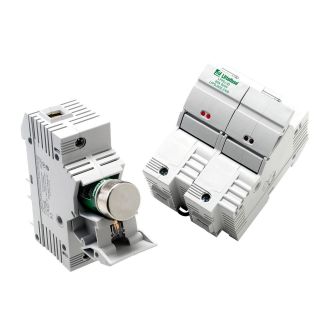

Littelfuse® POWR-GARD® POWR-SAFE LFPSJ30-3ID Dead Front Fuse Holder With Dual LED Indicator, 600 VAC/VDC, 30 A, Class: J, 18 to 1 AWG Wire, 3 Poles

Manufacturer: Littelfuse

Manufacturer part number: LFPSJ30-3ID

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$207.36

Qty:

Product Details

Brand Name

Littelfuse®

Type

Dead Front

Description

Littelfuse® POWR-GARD® POWR-SAFE Fuse Holder, Dead Front, Series: LFPSJ, 600 VAC/VDC, 30 A, 3 Pole, Class: J, Pressure Plate, 18 to 1 AWG Wire, DIN Rail Mount, For Use With: JTD, JTD-ID and JLS Series Class J Fuse, Thermoplastic, 4.606 in H x 4.251 in W x 2.838 in D

Standards

UL File No. E14721 | CSA 2529839

Features

Provide optimum protection to personnel
Small compact design offers ultimate flexibility
Easy installation and fuse removal with no additional pullers or tools required
200 kA interrupting rating
Phillips®/slotted terminal screws
35 mm DIN rail mounting

Specifications

Amperage Rating:	30 A
Class:	J
Connection Type:	Pressure Plate
Country of Origin:	DE
Dimensions:	4.606 in H x 4.251 in W x 2.838 in D
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	LFPSJ
Suitable For Use With:	JTD, JTD-ID and JLS Series Class J Fuse
Voltage Rating:	600 VAC/VDC
Wire Size:	18 to 1 AWG
