LFR60030-1PID LIT

Name: LFR60030-1PID LIT
Brand: Littelfuse
SKU: LFR60030-1PID LIT
Price: 52.78 USD
Availability: OutOfStock

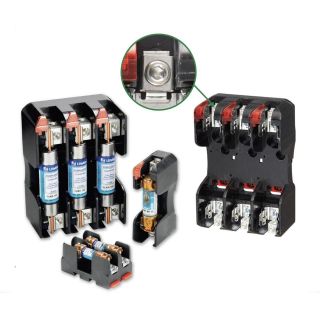

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFR60030-1PID

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$52.78 / EA

Description

Brand Name

Littelfuse®

Type

Indicating

Description

The new Littelfuse® class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate a rejection feature, which only allows class R fuses to be inserted.

Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFR, 600 VAC, 30 A, 1 Pole, Class: R, Pressure Plate, 14 to 6 AWG Cu Wire, Bolt-In/DIN Rail Mount, 2 in Fuse Length, 0.563 in Fuse Dia, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID, IDSR Series Fuse, Black, 6.56 in H x 1.51 in W x 2.07 in D

Standards

Features

Indication offered on most 250 and 600 VAC versions
DIN rail releasable for all non-knife blade style fuses
Only 1-hand is required to release from DIN rail (lock open lock closed)
Universal mounting holes make for easy replacement
Clip designs maximize electrical contact and minimize heat rise
Reinforcing clips are standard on all class R fuse blocks
Solid/stranded wire

Specifications

Amperage Rating:	30 A
Class:	R
Color:	Black
Connection Type:	Pressure Plate
Country of Origin:	CN
Dimensions:	6.56 in H x 1.51 in W x 2.07 in D
Fuse Diameter:	0.563 in
Fuse Length:	2 in
Mounting Type:	Bolt-In/DIN Rail
Number of Poles:	1
Series:	LFR
Suitable For Use With:	FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID, IDSR Series Fuse
Temperature Rating:	130 deg C
Voltage Rating:	600 VAC
Wire Size:	14 to 6 AWG Cu
