LFR60030-3PID LIT

Name: LFR60030-3PID LIT
Brand: Littelfuse
SKU: LFR60030-3PID LIT
Price: 108.44 USD
Availability: OutOfStock

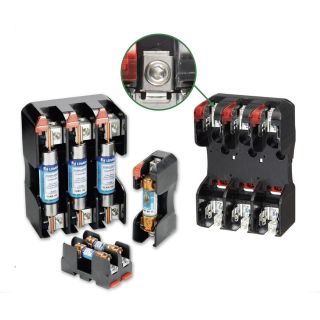

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFR60030-3PID

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$108.44 / EA

Description

Brand Name

Littelfuse®

Type

Indicating

Description

The Littelfuse® Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.

Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFR, 600 VAC, 30 A, 3 Pole, Class: R, Pressure Plate, 22 to 10 AWG Wire, DIN Rail Mount, 2 in Fuse Length, 0.563 in Fuse Dia, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse, Thermoplastic, 6.56 in L x 4.25 in W x 2.07 in H

Standards

RoHS Compliant | UL Listed | CSA Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Universal mounting holes for easy replacement
One hand release from DIN rail for ferrule style fuses
Reinforced fuse clips are standard on all class H and class R fuse blocks
<0.6 ma at 600 V leakage current
200 kA rms symmetrical withstand rating
Clip designs maximize electrical contact and minimize heat rise
DIN-Rail releasable for all non-knife blade style fuses
UL94 V-0 flammability rating
Lead (Pb) free

Specifications

Amperage Rating:	30 A
Class:	R
Connection Type:	Pressure Plate
Country of Origin:	CN
Dimensions:	6.56 in L x 4.25 in W x 2.07 in H
Fuse Diameter:	0.563 in
Fuse Length:	2 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	LFR
Suitable For Use With:	FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
Temperature Rating:	130 deg C
Voltage Rating:	600 VAC
Wire Size:	22 to 10 AWG
