LFR60200-3C LIT

Name: LFR60200-3C LIT
Brand: Littelfuse
SKU: LFR60200-3C LIT
Price: 898.48 USD
Availability: OutOfStock

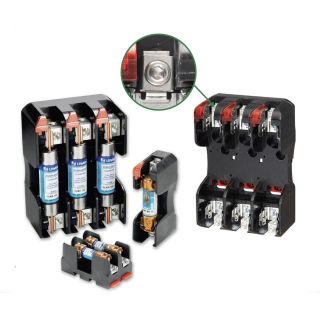

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFR60200-3C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$898.48 / EA

Description

Brand Name

Littelfuse®

Alternate Supplier #

Grainger - 6MUL7

Description

The new Littelfuse® class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate A rejection feature, which only allows class R fuses to be inserted.

Littelfuse® POWR-GARD® Fuse Block, Series: LFR, 600 VAC, 200 A, 3 Pole, Class: R, Box Lug, 6 AWG to 250 kcmil Wire, DIN Rail Mount, 7.126 in Fuse Length, 1.874 in Fuse Dia, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse, Thermoplastic, 9.62 in L x 9 in W x 2.85 in H

Standards

RoHS Compliant | UL Listed | CSA Certified | 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Universal mounting holes for easy replacement
Only 1-hand is required to release from DIN rail (lock open lock closed)
Reinforced fuse clips are standard on all class H and class R fuse blocks
<0.6 mA at 600 VAC leakage current
200 kA rms symmetrical withstand rating
Clip designs maximize electrical contact and minimize heat rise
DIN rail releasable for all non-knife blade style fuses
Lead (Pb) free
Indication offered on most 250 and 600 VAC versions

Specifications

Amperage Rating:	200 A
Class:	R
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	9.62 in L x 9 in W x 2.85 in H
Fuse Diameter:	1.874 in
Fuse Length:	7.126 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	LFR
Suitable For Use With:	FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
Temperature Rating:	130 deg C
Voltage Rating:	600 VAC
Wire Size:	6 AWG to 250 kcmil
