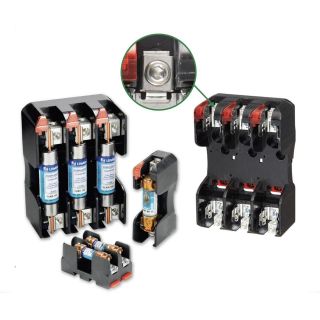

LFR604001C LIT

Product Details

Manufacturer:
Manufacturer part number:
LFR604001C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Littelfuse®

Type

Non-Indicating

Description

The new Littelfuse® class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate A rejection feature, which only allows class R fuses to be inserted.
Littelfuse® POWR-GARD® Fuse Block, Non-Indicating, Series: LFR, 600 VAC, 400 A, 1 Pole, Class: R, Box Lug Connection, 1/0 AWG to 350 kcmil Al/Cu Wire, Bolted-In Mounting, 8.626 in Fuse Length, 2.406 in Diameter Fuse, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse, 14.5 in H x 3.5 in W x 3.32 in D Dimensions

Standards

RoHS Compliant | UL File No. E14721 | CSA File No. LR7316 | cUL Listed | UL 94-V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Indication offered on most 250 and 600 VAC versions
  • DIN rail releasable for all non-knife blade style fuses
  • Only 1-hand is required to release from DIN rail (lock open lock closed)
  • Universal mounting holes make for easy replacement
  • Clip designs maximize electrical contact and minimize heat rise
  • Reinforcing clips are standard on all class R fuse blocks
  • Solid/stranded wire

Specifications

Amperage Rating:400 A
Class:R
Connection Type:Box Lug
Country of Origin:CN
Dimensions:14.5 in H x 3.5 in W x 3.32 in D
Fuse Diameter:2.406 in
Fuse Length:8.626 in
Mounting Type:Bolted-In
Number of Poles:1
Series:LFR
Suitable For Use With:FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
Temperature Rating:130 deg C
Voltage Rating:600 VAC
Wire Size:1/0 AWG to 350 kcmil Al/Cu
