LFT306003CS LIT

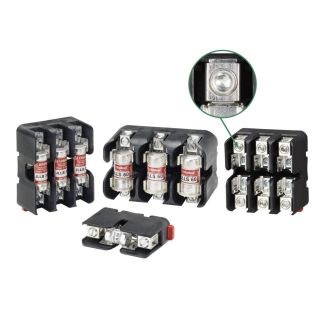

Picture of LFT306003CS LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
LFT306003CS
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,779.06 / EA

Description

Brand Name

Littelfuse®

Type

Non-Indicating

Description

The new Littelfuse® class T fuse blocks offer many advantages over previous generations that are noted in the features and benefits section. Of particular value is the space savings these new blocks provide.
Littelfuse® POWR-GARD® Fuse Block, Non-Indicating, Series: LFT, 300 VAC, 600 A, 3 Pole, Class: T, Box Lug Connection, 6 AWG to 500 kcmil Al/Cu Wire, Bolted-In Mounting, 3.063 in Fuse Length, 1.594 in Diameter Fuse, 130 deg C, For Use With: JLLN Series Fuse, 8.75 in H x 8.25 in W x 2.93 in D Dimensions

Standards

RoHS Compliant | UL File No. E14721 | CSA File No. LR7316 | cUL Listed | UL 94-V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Compact design means increased space savings
  • DIN rail releasable for all 30 to 60 A fuse blocks
  • Only 1-hand is required to release from DIN rail (lock open lock closed)
  • Molded phenolic base
  • Steel reinforcing springs supplied as standard in order to provide low resistance connection and long-range reliability
  • Larger blocks employ integral heat sink for maximum heat dissipation
  • Universal mounting holes make for easy replacement
  • Solid/stranded wire

Specifications

Amperage Rating:600 A
Class:T
Connection Type:Box Lug
Country of Origin:CN
Dimensions:8.75 in H x 8.25 in W x 2.93 in D
Fuse Diameter:1.594 in
Fuse Length:3.063 in
Mounting Type:Bolted-In
Number of Poles:3
Series:LFT
Suitable For Use With:JLLN Series Fuse
Temperature Rating:130 deg C
Voltage Rating:300 VAC
Wire Size:6 AWG to 500 kcmil Al/Cu
