LFT600303C LIT

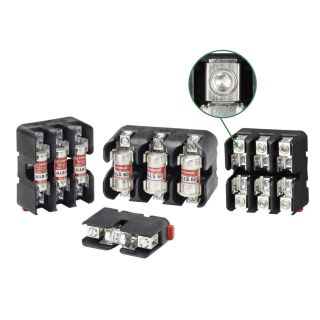

Picture of LFT600303C LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
LFT600303C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$108.04 / EA

Description

Brand Name

Littelfuse®

Alternate Supplier #

Grainger - 6MUV2

Description

The new Littelfuse® class T fuse blocks offer many advantages over previous generations that are noted in the features and benefits section. Of particular value is the space savings these new blocks provide.
Littelfuse® POWR-GARD® Fuse Block, Series: LFT, 600 VAC, 30 A, 3 Pole, Class: T, Box Lug, 4 to 2 AWG, 14 to 6 AWG Wire, DIN Rail Mount, 1-1/2 in Fuse Length, 0.563 in Fuse Dia, 125 deg C, For Use With: JLLS Series Fuse, Phenolic, 3.53 in L x 2.72 in W x 1.65 in H

Standards

RoHS Compliant | UL Listed | CSA Certified | 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

  • Compact design means increased space savings
  • Universal mounting holes for easy replacement
  • Reinforced fuse clips are standard on all class H and class R fuse blocks
  • <0.6 mA at 600 VAC leakage current
  • 200 kA rms symmetrical withstand rating
  • Lead (Pb) free
  • DIN rail releasable for all 30 to 60 A fuse blocks
  • Only 1-hand is required to release from DIN rail (lock open lock closed)
  • Molded phenolic base
  • Steel reinforcing springs supplied as standard in order to provide low resistance connection and long-range reliability
  • Larger blocks employ integral heat sink for maximum heat dissipation
  • Covers available for most amperages to enhance safety

Specifications

Amperage Rating:30 A
Class:T
Connection Type:Box Lug
Country of Origin:CN
Dimensions:3.53 in L x 2.72 in W x 1.65 in H
Fuse Diameter:0.563 in
Fuse Length:1-1/2 in
Material:Phenolic
Mounting Type:DIN Rail
Number of Poles:3
Series:LFT
Suitable For Use With:JLLS Series Fuse
Temperature Rating:125 deg C
Voltage Rating:600 VAC
Wire Size:4 to 2 AWG, 14 to 6 AWG
