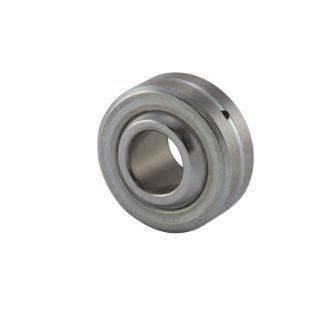

Picture of LHA7 RBC
Actual Product May Vary From Image

LHA7 RBC

Heim® LHA7 LHA Spherical Plain Bearing, 7/16 in ID x 0.9062 in OD, 52100 Steel
Manufacturer: Roller Bearing Corporation
Manufacturer part number: LHA7
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$111.05

Product Details

Brand Name

Heim®

Description

Heim® Spherical Plain Bearing, Series: LHA, 7/16 in Inside Dia, 0.9062 in Outside Dia, 52100 Steel

Application

Steering Linkages

Standards

ASPR | CAS | DFAR | FAR Standards

Features

  • Open enclosure
  • Requires relubrication
  • 6.5 deg misalignment angle
  • Clevis applications, pivot points performance
  • 2-piece metal to metal bearing
  • Inner race directly contacts outer race for added strength and extra static capacity
  • Unique manufacturing process yields industry-leading conformity between ball and outer race for maximum capacity
  • All exposed surfaces have protective corrosion resistance coating
  • 10706 lb axial static
  • 9300 lb static

Specifications

Country of Origin:US
Inside Diameter:7/16 in
Material:52100 Steel
Outside Diameter:0.9062 in
Series:LHA
