LL125M APN

Name: LL125M APN
Brand: Appleton
SKU: LL125M APN
Price: 39.79 USD
Availability: InStock

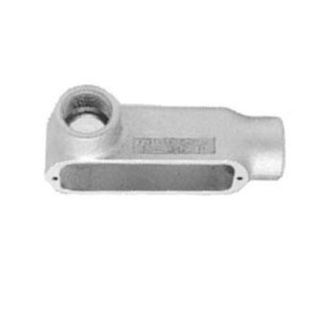

Appleton® UNILETS™ LL125-M Type LL Conduit Outlet Body, 1-1/4 in Hub, Form 35, 32 cu-in, Malleable Iron, Triple Coated

Manufacturer: Appleton

Manufacturer part number: LL125-M

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$39.79

Qty:

Product Details

Brand Name

Appleton®

Type

Type LL

Alternate Supplier #

Grainger - 10V993

Description

Appleton® Form 35™ Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Appleton® UNILETS™ Conduit Outlet Body, Type LL, 1-1/4 in Hub, 2 Hubs, 32 cu-in Capacity, Form 35 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Triple Coated Finish, 8.19 in L x 3.5 in W x 3.56 in H Dimensions

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

ARRA Compliant | UL 514B File No. E2527 | C22.2 No. 18.3/065183 Certified

Features

Smooth, rounded integral bushing in hubs protects conductor insulation
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
Form 35™ malleable iron UNILETS™ high tensile strength and ductility
High corrosion resistance, high impact and shock resistance
Sizes with flat back design ideal where fitting is mounted flat against surface

Specifications

Capacity:	32 cu-in
Connection Type:	Tapered FNPT
Country of Origin:	MX
Dimensions:	8.19 in L x 3.5 in W x 3.56 in H
Enclosure:	NEMA FB-1
Finish:	Triple Coated
Form:	Form 35
Hub Size:	1-1/4 in
Material:	Malleable Iron
Mounting Type:	Surface
Number of Hubs:	2
