LL6X150M OZG

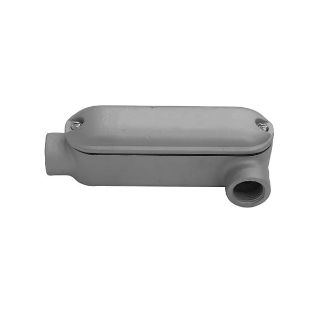

Picture of LL6X150M OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
LL6X-150M
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$338.45 / EA

Description

Brand Name

O-Z/Gedney

Type

Type LL

Description

O-Z/Gedney Mogul Conduit Body, Type LL, Series: LL6X, 1-1/2 in Hub, 2 Hubs, 93 cu-in Capacity, Tapered Female NPT Connection, Malleable Iron, Electro-Plated Zinc/Dichromate/Epoxy Powder Coated, 13 in L x 3.13 in W x 3.75 in H Dimensions

Application

For rigid, IMC conduits and providing access to large, heavy conductors for pulling, splicing, maintenance and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bends

Standards

ARRA Compliant | UL 514A | UL File No. E18095 | CSA C22.2 No. 18 | CSA 009795 | Federal Specification No. A-A-50563 | NEMA FB-1 | NEMA FB-2.10 | Class I, Division 2 Hazardous Locations per NEC 501.10(B)(4)

Features

  • Roomy interiors, more wiring space
  • Smooth, rounded integral bushings in hubs protect conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • 1/2 to 3 in blank covers are domed for extra wiring space
  • Suitable for wet locations when used with gasketed covers

Includes

Cover, Neoprene Gasket and Captive Stainless Steel Screws

Specifications

Capacity:93 cu-in
Connection Type:Tapered Female NPT
Country of Origin:MX
Dimensions:13 in L x 3.13 in W x 3.75 in H
Finish:Electro-Plated Zinc/Dichromate/Epoxy Powder Coated
Hub Size:1-1/2 in
Material:Malleable Iron
Number of Hubs:2
Series:LL6X

Products Specifications

Brand Name
O-Z/Gedney
Size
1 1/2 in
