LL8M50 GAT

Name: LL8M50 GAT
Brand: Gates Corporation
SKU: LL8M50 GAT
Price: 35.61 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

LL8M50

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$35.61 / EA

Description

Brand Name

Gates®

Type

Long Length

Description

PowerGrip® HTD® belts have a larger, more robust tooth profile for increased capacity, as compared to timing belts.

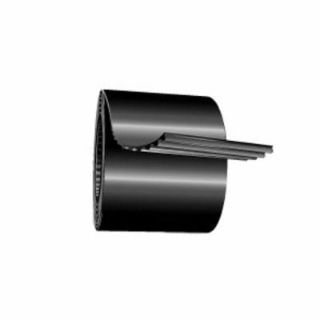

Gates® PowerGrip® HTD® Synchronous Belt, Long Length, Series: 9308, 8 mm Pitch, 300 ft Overall Length, 50 mm Width, -65 to 185 deg F, Curved Tooth Profile, Neoprene, Fiberglass Reinforced Material

Application

For linear movement, positioning and conveying applications

Standards

RMA Standard

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Nylon tooth facing provides a durable wear surface for long service life
Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
Neoprene body provides protection against grime, grease, oil and moisture

Specifications

Country of Origin:	US
Material:	Neoprene
Overall Length:	300 ft
Pitch:	8 mm
Reinforced Material:	Fiberglass
Series:	9308
Temperature Range:	-65 to 185 deg F
Tooth Profile:	Curved
Width:	50 mm
