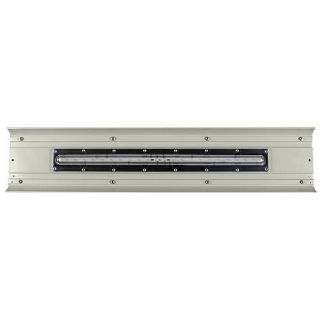

LLEDA12LU2H APN

Name: LLEDA12LU2H APN
Brand: Appleton
SKU: LLEDA12LU2H APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

LLEDA12LU2H

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Emergency Battery Backup

Description

Appleton® Viamaster™ LED Series luminaires are designed for simple installation and maintece - whether specified for new construction or retrofitted as a more reliable and efficient replacement for fluorescent fixtures. They are available in multiple voltages, lumen outputs and mounting styles to suit practically any hazardous location installation.

Appleton® Viamaster™ LED Luminaire, Emergency Battery Backup, Series: LLED, 120 to 277 VAC, 15 W Fixture, 0.2/1.2 A, 50/60 Hz Frequency, LED Lamp, 2200 Lumens, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Lens, NEMA 3R/4/4X Enclosure, 33.19 in L x 7 in W Dimensions, Copper Free Aluminum, Gray

Application

Oil Refineries, Petrochemical Facilities, Pulp and Paper Mills, Food Processing Plants, Waste and Sewer Treatment, Underground Tunnels, General Manufacturing Facilities, NEC and CEC Governed Hazardous Locations and Wet Locations

Standards

UL 1598 | UL 8750 | UL 844 | UL 1598A | UL 50E | cCSAus File No. 065182 | cULus File No. E10444 | DLC Qualified | NEC/CEC Class I, Div 2, Groups A, B, C, D | Class I, Zone 2, Group IIC | Class II, Div 2, Groups F, G, Zone 22, Group IIIB | Class III

Features

They are ideal for use in locations where flammable gases, vapors and dusts are present, a high degree of corrosion resistance is required and protection against dirt, water and moisture is necessary
Lightweight design, hinged cover with captive screws and terminal block wiring for easy installation and maintece
Standard screw type terminal block can accept UL/CSA 26 to 10 AWG wire
Contemporary, low profile design suitable for tight spaces
Field replaceable LED driver and lens
Industry leading thermal management for safe, reliable operation over wide temperature range
Full range of lumen outputs, with light distribution equivalent to Appleton® FV series fluorescent fixtures
Easy to retrofit in same mounting footprint as Appleton® FV series fluorescent fixtures
Two opposing 3/4 in NPT hubs with adjacent terminal blocks for thru wiring, (1) 3/4 in NPT close-up plug provided

Specifications

Amperage Rating:	0.2/1.2 A
Average Life:	60000 hr
Color:	Gray
Color Rendering Index (CRI):	70
Color Temperature:	5650 K
Country of Origin:	RO
Dimensions:	33.19 in L x 7 in W
Enclosure Type:	NEMA 3R/4/4X
Fixture Wattage:	15 W
Frequency Rating:	50/60 Hz
Lamp Type:	LED
Lens Type:	Polycarbonate
Lumens:	2200 Lumens
Material:	Copper Free Aluminum
Series:	LLED
Voltage Rating:	120 to 277 VAC
