LLSRK03.2 LIT

Name: LLSRK03.2 LIT
Brand: Littelfuse
SKU: LLSRK03.2 LIT
Price: 45.08 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LLSRK03.2

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$45.08 / EA

Description

Brand Name

Littelfuse®

Description

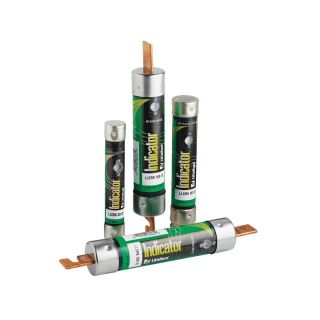

Littelfuse® LLNRK and LLSRK series POWR-PRO® fuses provide superior overload and short circuit protection for service entrance, main, feeder and general purpose branch circuits upto 600 A. LLNRK/LLSRK series fuses can be installed in existing class H fuse blocks to upgrade systems containing lower interrupting rating class H one time or renewable fuses.

Littelfuse® POWR-GARD® POWR-PRO® Time Delay Fuse, Series: LLSRK, Non-Indicating, Rejection, 3.2 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: RK1, Clip Terminal, Holder Mounting, Cartridge Body, Dual Element, 13/16 in Dia x 5 in L Body

Application

All General Purpose Circuits, Motors, Transformers, Solenoids, Fluorescent Lighting and All System Components with High Inrush Currents Applications

Standards

Standard 248-12 | UL Listed | CSA Certified | Federal Specification WF-1814 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Extremely current limiting
Current limiting design often permits use of readily available, less costly equipment
Excellent time delay
200 kA at 600 VAC, 20 kA at 300 VDC interrupt rating

Specifications

Amperage Rating:	3.2 A
Body Size:	13/16 in Dia x 5 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20/200 kA
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Series:	LLSRK
Terminal Type:	Clip
Voltage Rating:	600 VAC/300 VDC
