LM14535 LEE

Name: LM14535 LEE
Brand: Leeson Electric
SKU: LM14535 LEE
Availability: OutOfStock

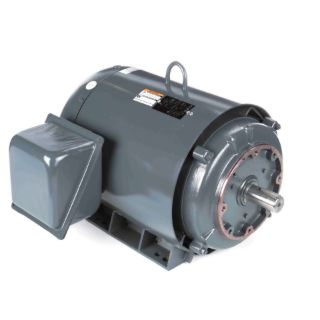

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM14535

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

6-Pole Squirrel Cage Induction Run

Description

LEESON® General Purpose Motor, 6-Pole Squirrel Cage Induction Run, Application Type: General Purpose AC Motors, 25 hp, 230/460 V, 65/32.5 A, 60/50 Hz, 3 ph, 1182 rpm, 1 Speed, Drip-Proof, 324TC Frame, 2-1/8 in Dia x 5 in L Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 28 in L x 20.72 in W x 19.01 in H

Standards

CE Certified | CSA Certified | UL Recognized

Features

Premium efficiency rating
Inverter-rated
Nameplated for 50 Hz operation
Class B insulation systems, class F 140 frame and higher
Shielded ball bearings for direct coupled applications

Specifications

Amperage Rating:	65/32.5 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	28 in L x 20.72 in W x 19.01 in H
Enclosure Type:	Drip-Proof
Frame:	324TC
Frequency Rating:	60/50 Hz
Horsepower:	25 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	2-1/8 in Dia x 5 in L
Speed:	1182 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
