LM14814 LEE

Name: LM14814 LEE
Brand: Leeson Electric
SKU: LM14814 LEE
Availability: OutOfStock

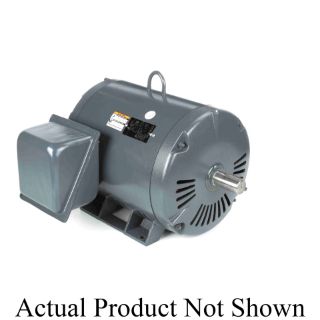

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM14814

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 100 hp, 230/460 VAC, 218/109 A, 60 Hz Frequency, 3 ph ph, 3575 rpm Speed, DP Enclosure, 365TS Frame, 1.88 in Dia x 3.75 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 441 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 27.27 in L x 25.57 in W x 21.55 in H Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage induction run

Specifications

Amperage Rating:	218/109 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	27.27 in L x 25.57 in W x 21.55 in H
Enclosure Type:	DP
Frame:	365TS
Frequency Rating:	60 Hz
Horsepower:	100 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.88 in Dia x 3.75 in L
Speed:	3575 rpm
Temperature Rating:	40 deg C
Torque Rating:	441 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
