LM16029 LEE

Name: LM16029 LEE
Brand: Leeson Electric
SKU: LM16029 LEE
Availability: OutOfStock

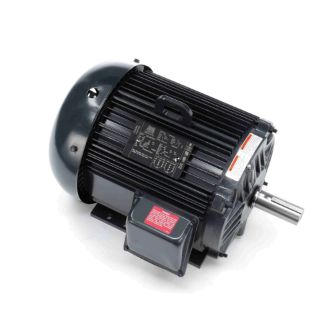

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM16029

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, Continuous-Duty, General Purpose AC Motors Application, 7.5 hp, 230/460 VAC, 19.2/9.6 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213T Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 22.3 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 18.84 in L x 13.31 in W x 12.46 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	19.2/9.6 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	18.84 in L x 13.31 in W x 12.46 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	213T
Frequency Rating:	60 Hz
Horsepower:	7.5 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	1770 rpm
Temperature Rating:	40 deg C
Torque Rating:	22.3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
