LM16222 LEE

Name: LM16222 LEE
Brand: Leeson Electric
SKU: LM16222 LEE
Availability: OutOfStock

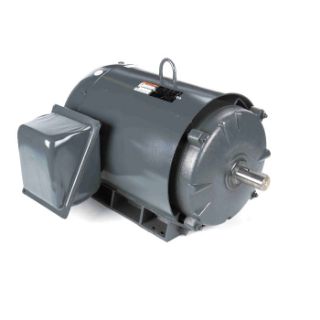

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM16222

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

Leeson® Motor, 2-Pole Continuous Duty, General Purpose AC Motor Application, Induction Run Squirrel Cage Motor Special Features, 250 hp, 460 V, 263 A, 60 Hz Frequency, 3 ph, 3580 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 447/449TS Frame, 2-3/8 in Dia x 4-3/4 in L Shaft, Reversible Rotation, 1.15 Service Factor, Shielded Ball Bearing, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 47.99 in L x 32.84 in W x 25.65 in H Dimensions

Standards

CE Certified | CSA Certified | UL Recognized

Features

Induction Run Squirrel Cage Motor

Specifications

Amperage Rating:	263 A
Application Type:	General Purpose AC Motor
Bearing Type:	Shielded Ball
Dimensions:	47.99 in L x 32.84 in W x 25.65 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	447/449TS
Frequency Rating:	60 Hz
Horsepower:	250 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2-3/8 in Dia x 4-3/4 in L
Speed:	3580 rpm
Temperature Rating:	40 deg C
Voltage Rating:	460 V
