LM16235 LEE

Name: LM16235 LEE
Brand: Leeson Electric
SKU: LM16235 LEE
Availability: OutOfStock

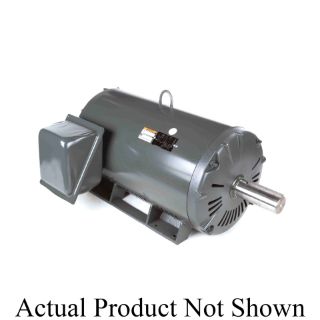

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM16235

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 250 hp, 460 VAC, 284 A, 60 Hz Frequency, 3 ph ph, 1785 rpm Speed, DP Enclosure, 447T Frame, 3.38 in Dia x 8.5 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 735 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 42.93 in L x 30.85 in W x 24.67 in H Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage induction run

Specifications

Amperage Rating:	284 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	42.93 in L x 30.85 in W x 24.67 in H
Enclosure Type:	DP
Frame:	447T
Frequency Rating:	60 Hz
Horsepower:	250 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	3.38 in Dia x 8.5 in L
Speed:	1785 rpm
Temperature Rating:	40 deg C
Torque Rating:	735 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	460 VAC
