LM16745 LEE

Name: LM16745 LEE
Brand: Leeson Electric
SKU: LM16745 LEE
Availability: OutOfStock

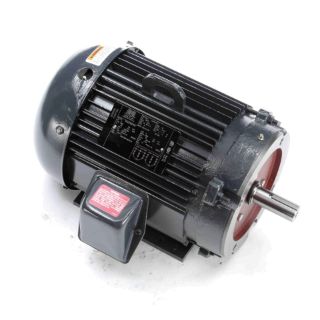

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM16745

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, Continuous-Duty, General Purpose AC Motors Application, 5 hp, 230/460 VAC, 11.8/5.9 A, 60 Hz Frequency, 3 ph ph, 3505 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 7.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 16.83 in L x 12.38 in W x 11.22 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	11.8/5.9 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	16.83 in L x 12.38 in W x 11.22 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	C-Face/Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	3505 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
