LM17390 LEE

Name: LM17390 LEE
Brand: Leeson Electric
SKU: LM17390 LEE
Availability: OutOfStock

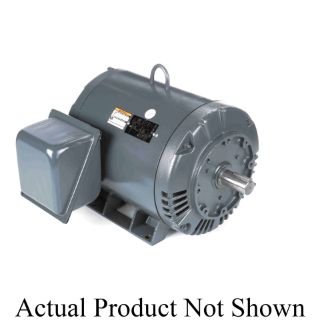

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM17390

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 150 hp, 230/460 VAC, 338/169 A, 60 Hz Frequency, 3 ph ph, 3565 rpm Speed, DP Enclosure, 405TSC Frame, 2.13 in Dia x 4.25 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 221 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 30.66 in L x 28.12 in W x 22.85 in H Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage induction run

Specifications

Amperage Rating:	338/169 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	30.66 in L x 28.12 in W x 22.85 in H
Enclosure Type:	DP
Frame:	405TSC
Frequency Rating:	60 Hz
Horsepower:	150 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	2.13 in Dia x 4.25 in L
Speed:	3565 rpm
Temperature Rating:	40 deg C
Torque Rating:	221 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
