LM17956 LEE

Name: LM17956 LEE
Brand: Leeson Electric
SKU: LM17956 LEE
Availability: OutOfStock

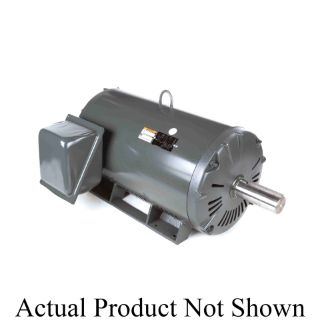

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM17956

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, Continuous-Duty, General Purpose AC Motors Application, 300 hp, 460 VAC, 337 A, 60 Hz Frequency, 3 ph ph, 1787 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 447/449T Frame, 3.38 in Dia x 8.5 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 882 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 52.08 in L x 32.84 In W x 25.65 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Class B insulation systems 42, 48 and 56 frames
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	337 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	52.08 in L x 32.84 In W x 25.65 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	447/449T
Frequency Rating:	60 Hz
Horsepower:	300 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	3.38 in Dia x 8.5 in L
Speed:	1787 rpm
Temperature Rating:	40 deg C
Torque Rating:	882 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	460 VAC
