LM18306 LEE

Name: LM18306 LEE
Brand: Leeson Electric
SKU: LM18306 LEE
Availability: OutOfStock

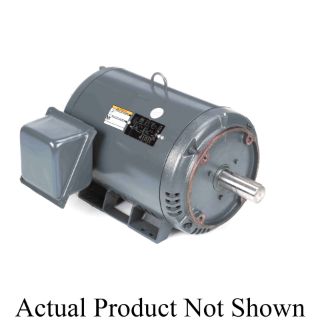

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM18306

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 125 hp, 575 VAC, 122 A, 60 Hz Frequency, 3 ph ph, 1782 rpm Speed, DP Enclosure, 405T Frame, 2.88 in Dia x 7.25 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 368 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 33.31 in L x 28.12 in W x 22.85 in H Dimensions

Application

Pump, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
Squirrel cage induction run

Specifications

Amperage Rating:	122 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	33.31 in L x 28.12 in W x 22.85 in H
Enclosure Type:	DP
Frame:	405T
Frequency Rating:	60 Hz
Horsepower:	125 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	2.88 in Dia x 7.25 in L
Speed:	1782 rpm
Temperature Rating:	40 deg C
Torque Rating:	368 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	575 VAC
