LM18307 LEE

Name: LM18307 LEE
Brand: Leeson Electric
SKU: LM18307 LEE
Availability: OutOfStock

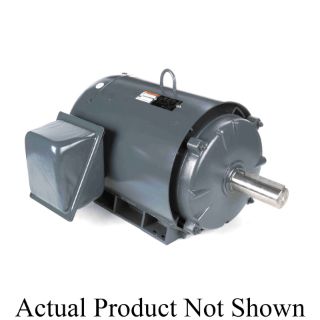

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM18307

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 100 hp, 575 VAC, 94.5 A, 60 Hz Frequency, 3 ph ph, 1783 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 405T Frame, 2.88 in Dia x 7.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 294 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 38.4 in L x 29.68 in W x 23.53 in H Dimensions

Application

Pump, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
Squirrel cage induction run

Specifications

Amperage Rating:	94.5 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	38.4 in L x 29.68 in W x 23.53 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	405T
Frequency Rating:	60 Hz
Horsepower:	100 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.88 in Dia x 7.25 in L
Speed:	1783 rpm
Temperature Rating:	40 deg C
Torque Rating:	294 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	575 VAC
