LM19530 LEE

Name: LM19530 LEE
Brand: Leeson Electric
SKU: LM19530 LEE
Availability: OutOfStock

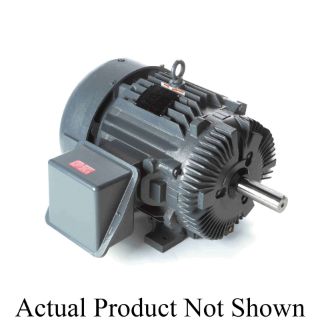

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM19530

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Automotive Motors Application, 50 hp, 460 VAC, 57 A, 60 Hz Frequency, 3 ph ph, 1780 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 365U Frame, 2.13 in Dia x 6.38 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 148 ft-lb Torque, Rigid Base Mounting, 65 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 33 in L x 28.1 in W x 22.48 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Meets NEMA U-frame dimensional and performance standards
Meets or exceeds general motors GM-7EH and 7EQ and ford EM1 and Chrysler NPEM-100 specifications
Oversized and cast iron terminal box with threaded conduit holes
NEMA design B performance
Inverter rated
Squirrel cage induction run

Specifications

Amperage Rating:	57 A
Application Type:	Automotive Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	33 in L x 28.1 in W x 22.48 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	365U
Frequency Rating:	60 Hz
Horsepower:	50 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	2.13 in Dia x 6.38 in L
Speed:	1780 rpm
Temperature Rating:	65 deg C
Torque Rating:	148 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	460 VAC
