LM24677 LEE

Name: LM24677 LEE
Brand: Leeson Electric
SKU: LM24677 LEE
Availability: OutOfStock

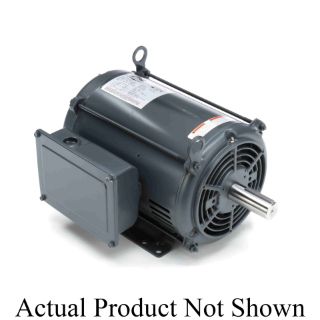

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM24677

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 2 hp, 115/208 to 230 VAC, 21/11.3 to 10.5 A, 60 Hz Frequency, 1 ph ph, 1740 rpm Speed, DP Enclosure, 145TZ Frame, 0.88 in Dia x 2.25 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 6.03 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 13.49 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	21/11.3 to 10.5 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.49 in L
Enclosure Type:	DP
Frame:	145TZ
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1740 rpm
Temperature Rating:	40 deg C
Torque Rating:	6.03 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
