LM25114 LEE

Name: LM25114 LEE
Brand: Leeson Electric
SKU: LM25114 LEE
Availability: OutOfStock

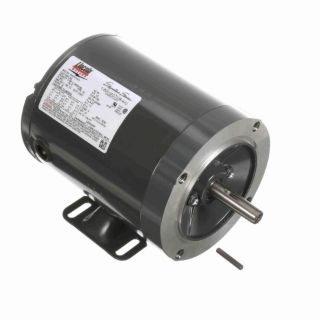

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM25114

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Automotive Motors Application, 0.5 hp, 230/460 VAC, 2/1 A, 60 Hz Frequency, 3 ph, 1725 rpm Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 1.5 ft-lb Torque, Rigid Base Mounting, 65 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 10.44 in L x 6.5 in W x 6.68 in H Dimensions

Application

Pumps, Fans, Conveyors, Gear Boxes, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

NEMA design B performance
Cast aluminum end brackets
Squirrel cage induction run

Specifications

Amperage Rating:	2/1 A
Application Type:	Automotive Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	10.44 in L x 6.5 in W x 6.68 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	65 deg C
Torque Rating:	1.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
