LM28121 LEE

Name: LM28121 LEE
Brand: Leeson Electric
SKU: LM28121 LEE
Availability: OutOfStock

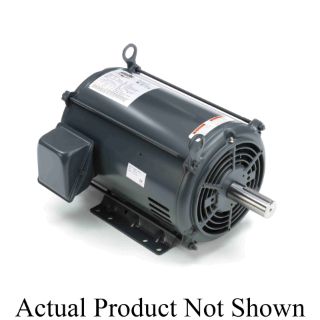

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM28121

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Elevator Motors Application, Inverter Ready Special Features, 10 hp, 200 VAC, 33.5 A, 60 Hz Frequency, 3 ph ph, 1160 rpm Speed, DP Enclosure, 256TC Frame, 1.63 in Dia x 4 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 45.3 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 27.64 in L x 13.01 in W x 12 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	33.5 A
Application Type:	Elevator Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	27.64 in L x 13.01 in W x 12 in H
Enclosure Type:	DP
Frame:	256TC
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	1.63 in Dia x 4 in L
Speed:	1160 rpm
Temperature Rating:	40 deg C
Torque Rating:	45.3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	200 VAC
