LM30696 LEE

Name: LM30696 LEE
Brand: Leeson Electric
SKU: LM30696 LEE
Availability: OutOfStock

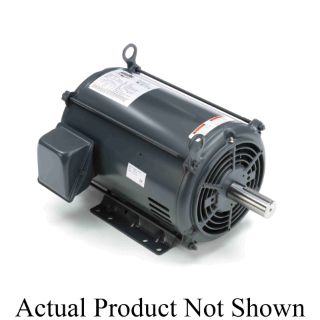

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

LM30696

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 30 hp, 200/400 VAC, 84/42 A, 60 Hz Frequency, 3 ph ph, 1775 rpm Speed, DP Enclosure, 286T Frame, 1.88 in Dia x 4.62 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 89 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 26.81 in L x 20.06 in W x 16.98 in H Dimensions

Application

Pumps, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Class B insulation systems 42, 48 and 56 frames
Shielded ball bearings for direct coupled applications
Torques exceed NEMA performance standards
Dynamically balanced rotors

Specifications

Amperage Rating:	84/42 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	26.81 in L x 20.06 in W x 16.98 in H
Enclosure Type:	DP
Frame:	286T
Frequency Rating:	60 Hz
Horsepower:	30 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.88 in Dia x 4.62 in L
Speed:	1775 rpm
Temperature Rating:	40 deg C
Torque Rating:	89 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	200/400 VAC
