LM742749-90033 TKN

Picture of LM742749-90033 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
LM742749-90033
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$19,943.32 / EA

Description

Brand Name

Timken®

Type

Precision Type TSF

Description

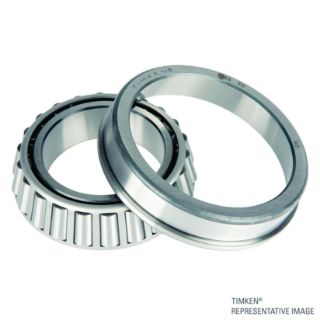

Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
Timken®, LM742749-90033, Tapered Roller Bearing, Precision Type TSF, Series: LM742700, 8-1/2 in Bore, 11-1/4 in OD, 1 Rows, 3/4 in Width, 96600 lb Dynamic/200000 lb Static Load, Steel Bearing, -65 to 250 deg F

Application

Machine Tool Spindles, Gear Reduction Units, Automotive Transaxles and Transmissions

Features

  • Cup is backed against flange face to allow housing to be through-bored
  • Accurate alignment of housing bores
  • Reduced machining costs

Specifications

Bearing Material:Steel
Bore Diameter:8-1/2 in
Cage Material:Steel
Load Capacity:96600 lb Dynamic/200000 lb Static
Number of Rows:1
Outside Diameter:11-1/4 in
Series:LM742700
Temperature Rating:-65 to 250 deg F
Width:3/4 in

Products Specifications

Brand Name
TIMKEN CORPORATION
