LNC-7LU-5K-3-1 HBL

Name: LNC-7LU-5K-3-1 HBL
Brand: Current Lighting
SKU: LNC-7LU-5K-3-1 HBL
Availability: OutOfStock

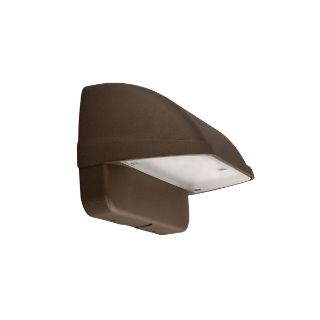

Actual Product May Vary From Image

Product Details

Manufacturer:

Current Lighting

Manufacturer part number:

LNC-7LU-5K-3-1

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

EXO

Type

Type III Distribution Compact

Description

EXO Wallpack, Type III Distribution Compact, Series: LNC, 120/277 VAC, 700 mA, LED Lamp, 17 W Lamp, 7 Lamps, 88 Lumens/W Light Output, 60000 hr Average Life, 5000 K Color Temperature, 70 CRI, 0 to 10 VAC Dimming Ballast, Acrylic Diffuser Lens, 1500 Lumens, Surface Mounting, Die Cast Aluminum Housing Material, Dark Bronze Housing Finish, 5.25 in H x 8.22 in W x 4.81 in D Dimensions

Application

Entry/Perimeter Illumination, Safety, Security, Identity and Outdoor Applications

Standards

cCSAus Certified | DLC Listed | UL 1598 for Wet Location | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features

Typical mounting height is up to 12 ft with 40 ft fixture spacing (without acrylic diffuser) and 30 ft spacing with acrylic diffuser installed
Full cut off distribution
Quick mount adapter provides easy installation
Up to 4:1 spacing to mounting height ratio means fewer fixtures to install
Photocontrol option offered for dusk to dawn control
Acrylic diffuser included, use for applications near entrances or locations where reduced brightness is desired
Dark bronze architectural finish for lasting appearance
-40 deg F minimum operating temperature

Specifications

Amperage Rating:	700 mA
Average Life:	60000 hr
Ballast Type:	0 to 10 VAC Dimming
Color Rendering Index (CRI):	70
Color Temperature:	5000 K
Country of Origin:	CN
Dimensions:	5.25 in H x 8.22 in W x 4.81 in D
Housing Finish:	Dark Bronze
Housing Material:	Die Cast Aluminum
Lamp Type:	LED
Lamp Wattage:	17 W
Lens Type:	Acrylic Diffuser
Light Output:	88 Lumens/W
Lumens:	1500 Lumens
Mounting Type:	Surface
Number of Lamps:	7
Series:	LNC
Voltage Rating:	120/277 VAC
