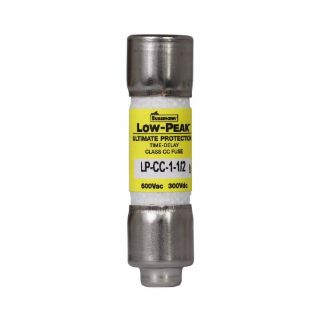

Actual Product May Vary From Image

LP-CC-1-1/2 BSF

Name: LP-CC-1-1/2 BSF
Brand: Bussmann
SKU: LP-CC-1-1/2 BSF
Price: 88.57 USD
Availability: InStock

Bussmann Low-Peak™ LP-CC-1-1/2 Current Limiting Time Delay Fuse, 1.5 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: LP-CC-1-1/2

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$88.57

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting

Alternate Supplier #

Grainger - 3HZ64

Description

EATON Bussmann series Low-Peak™ ultimate protection fuses are the industry's only UL listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse. The high interrupting rating allows for simple, worry-free installation in virtually any application. Low peak fuses are available in class CC, CF, J, L and RK1, so there is a fuse to meet the vast majority of 600 VAC over current protection needs. Plus, when upgrading to Low-Peak™ fuses, existing fuse inventory can be reduced by up to 33%.

Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1.5 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, Yellow, 13/32 in Dia x 1-1/2 in L Body Size

Application

Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting Applications, Safety and Security Systems

Standards

Features

Fast short circuit protection and dual element, time delay performance provide ultimate protection
Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation
Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A
Very compact with a physical size only 13/32 x 1-1/2 in with rejection tip
Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction
Superior protection for small horsepower motor circuit

Specifications

Amperage Rating:	1.5 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cartridge
Class:	cc
Color:	Yellow
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20/200 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	12 s at 200%
Series:	LP-CC
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
