LP3S-012-048C FSG

Name: LP3S-012-048C FSG
Brand: Federal Signal
SKU: LP3S-012-048C FSG
Price: 190.05 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Federal Signal

Manufacturer part number:

LP3S-012-048C

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$190.05 / EA

Description

Brand Name

Federal Signal

Type

Low Profile

Description

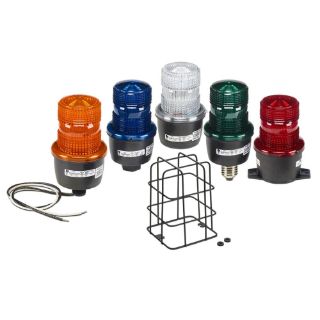

Federal Signal model LP3 low profile strobe light is a type 4X strobe that is available in five colors amber, blue, clear, green and red. LP3S include a surface gasket to complete the type 4X installation. An optional dome guard is available for use with the LP3S. LP3 units feature a threaded screw-on lens that provides tool free wiring and strobe tube replacement. The strobe tube is rated for 7000 hr. LP3S features a three hole surface mount ideal for control panels and other flat or flush surfaces the state-of-the-art strobe mechanism produces 2.2 J of energy, while drawing relatively low-level amperage.

Federal Signal StreamLine® Strobe Light, Low Profile, Series: LP3S, 12 to 48 VDC, 0.44 to 0.1 A, Cylindrical, 3-1/8 in Dia, Strobe Tube Lamp, Clear, 80 fpm Flash, 175000 cd, 7000 hr Average Life, Surface Mount, 4X/IP66/IP69K, -31 to 150 deg F, Specifications Met: ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, Polycarbonate Housing, 3.13 in W x 3.13 in D x 5.02 in H

Application

For indoor/outdoor applications

Standards

cUL Listed | CSA Certified | CE Certified

Features

Federal signal Fireball® strobe is a very low maintenance warning light for industrial applications where a vibration-resistant light is required to signal an emergency or process status
Fireball® features a unique dome that twists off easily for quick dome and lamp replacements
Features an integrated 1/2 in NPT pipe mount base as well as the three holes required for surface mount configurations
Fireball® dome and base design provides a watertight, dust tight and corrosion-resistant type 4X rating
Fireball® can be used in any application where a superior visual signal is needed
Especially effective in industrial hazard warning, process control, status indication and in areas with high ambient noise levels
Corner bracket and wall bracket fixture
1/2 in NPT pipe/surface mounting
NEMA 4X, IP66 enclosure

Specifications

Amperage Rating:	0.44 to 0.1 A
Average Life:	7000 hr
Color:	Clear
Country of Origin:	US
Diameter:	3-1/8 in
Dimensions:	3.13 in W x 3.13 in D x 5.02 in H
Flash Rate:	80 fpm
Housing Material:	Polycarbonate
Lamp Type:	Strobe Tube
Light Output:	175000 cd
Mounting Type:	Surface
NEMA Rating:	4X/IP66/IP69K
Series:	LP3S
Shape:	Cylindrical
Specifications Met:	ARRA Compliant\|BAA Compliant\|cUL Listed\|CSA Certified\|CE Certified\|UL Listed
Temperature Rating:	-31 to 150 deg F
Voltage Rating:	12 to 48 VDC
