LP3S-240R FSG

Product Details

Manufacturer:
Manufacturer part number:
LP3S-240R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Federal Signal

Type

Low Profile

Description

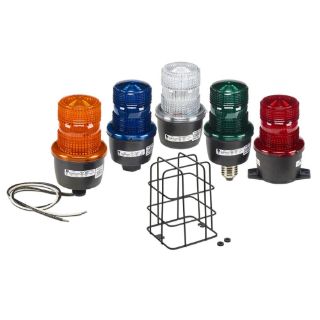

Federal Signal model LP3 low profile strobe light is a type 4X strobe that is available in five colors amber, blue, clear, green and red. LP3S include a surface gasket to complete the type 4X installation. An optional dome guard is available for use with the LP3S. LP3 units feature a threaded screw-on lens that provides tool free wiring and strobe tube replacement. The strobe tube is rated for 7000 hr. LP3S features a three hole surface mount ideal for control panels and other flat or flush surfaces the state-of-the-art strobe mechanism produces 2.2 J of energy, while drawing relatively low-level amperage.
Federal Signal StreamLine® Strobe Light, Low Profile, Series: LP3S, 240 VAC, 0.07 A, Cylindrical, 3-1/8 in Dia, Strobe Tube Lamp, Red, 80 fpm Flash, 175000 cd, 7000 hr Average Life, Surface Mount, 4X/IP66/IP69K, -31 to 150 deg F, Specifications Met: ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, Polycarbonate Housing, 3.13 in W x 3.13 in D x 5.02 in H

Application

For indoor/outdoor applications

Standards

cUL Listed | CSA Certified | CE Certified

Features

Easy access dome

Specifications

Amperage Rating:0.07 A
Average Life:7000 hr
Color:Red
Country of Origin:US
Diameter:3-1/8 in
Dimensions:3.13 in W x 3.13 in D x 5.02 in H
Flash Rate:80 fpm
Housing Material:Polycarbonate
Lamp Type:Strobe Tube
Light Output:175000 cd
Mounting Type:Surface
NEMA Rating:4X/IP66/IP69K
Series:LP3S
Shape:Cylindrical
Specifications Met:ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed
Temperature Rating:-31 to 150 deg F
Voltage Rating:240 VAC
