LP3T-012-048B FSG

Name: LP3T-012-048B FSG
Brand: Federal Signal
SKU: LP3T-012-048B FSG
Price: 199.52 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Federal Signal

Manufacturer part number:

LP3T-012-048B

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$199.52 / EA

Description

Brand Name

Federal Signal

Type

Low Profile

Description

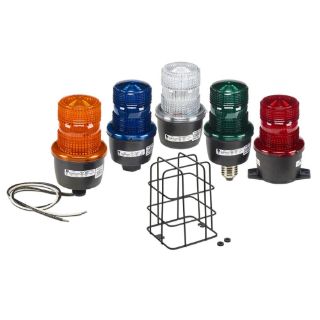

Federal Signal model LP3 low profile strobe light is a type 4X strobe that is available in five colors amber, blue, clear, green and red. The T-mount LP3T has a popular 2-hole design for wall or flush mounting. LP3T include a surface gasket to complete the type 4X installation. An optional dome guard is available for use with the LP3T. LP3 units feature a threaded screw-on lens that provides tool free wiring and strobe tube replacement. The strobe tube is rated for 7000 hr.

Federal Signal StreamLine® Strobe Light, Low Profile, Series: LP3T, 12 to 48 VDC, 0.44 to 0.1 A, Cylindrical, 3-1/8 in Dia, Strobe Tube Lamp, Blue, 65 to 95 fpm Flash, 175000 cd, 4000 hr Average Life, T-Mount Mount, 4X/IP66, -31 to 150 deg F, Specifications Met: ARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSA Certified, Polycarbonate Housing, 3.13 in W x 3.13 in D x 5.1 in H

Application

For indoor/outdoor applications

Features

Compact, economical and flexible
LP1 is designed to be flush mounted to control panels or other flat surfaces
Mounting is accomplished with two supplied 1-1/4 in, 8-32 in slotted hex bolts
Polypropylene gasket is supplied to create a watertight and dust tight seal
Gasket mounts between the base of the light and the mounting surface
LP1 is especially suited for use on control panels, machines, above entry ways, on walls and along assembly lines
12/24 VDC units are suitable in battery backup systems and vehicular applications such as forklifts and moving guided vehicles
Easy access dome

Specifications

Amperage Rating:	0.44 to 0.1 A
Average Life:	4000 hr
Color:	Blue
Country of Origin:	US
Diameter:	3-1/8 in
Dimensions:	3.13 in W x 3.13 in D x 5.1 in H
Flash Rate:	65 to 95 fpm
Housing Material:	Polycarbonate
Lamp Type:	Strobe Tube
Light Output:	175000 cd
Mounting Type:	T-Mount
NEMA Rating:	4X/IP66
Series:	LP3T
Shape:	Cylindrical
Specifications Met:	ARRA Compliant\|BAA Compliant\|cUL Listed\|UL Listed\|CSA Certified
Temperature Rating:	-31 to 150 deg F
Voltage Rating:	12 to 48 VDC
