LP3T-120A FSG

Product Details

Manufacturer:
Manufacturer part number:
LP3T-120A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Federal Signal

Type

Low Profile

Alternate Supplier #

Grainger - 3TDE6

Description

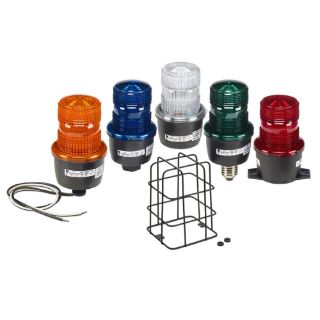

Federal Signal model LP3 low profile strobe light is a type 4X strobe that is available in five colors amber, blue, clear, green and red. The T-mount LP3T has a popular 2-hole design for wall or flush mounting. LP3T include a surface gasket to complete the type 4X installation. An optional dome guard is available for use with the LP3T. LP3 units feature a threaded screw-on lens that provides tool free wiring and strobe tube replacement. The strobe tube is rated for 7000 hr.
Federal Signal StreamLine® Strobe Light, Low Profile, Series: LP3T, 120 VAC, 0.1 A, Cylindrical, 3-1/8 in Dia, Strobe Tube Lamp, Amber, 80 fpm Flash, 175000 cd, 4000 hr Average Life, T-Mount Mount, 4X/IP66/IP69K, -31 to 150 deg F, Specifications Met: ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed, Polycarbonate Housing, 3.13 in W x 3.13 in D x 5.02 in H

Application

For indoor/outdoor applications

Standards

cUL Listed | CSA Certified

Features

  • Compact, economical and flexible
  • LP1 is designed to be flush mounted to control panels or other flat surfaces
  • Mounting is accomplished with two supplied 1-1/4 in, 8-32 in slotted hex bolts
  • Polypropylene gasket is supplied to create a watertight and dust tight seal
  • Gasket mounts between the base of the light and the mounting surface
  • LP1 is especially suited for use on control panels, machines, above entry ways, on walls and along assembly lines
  • 12/24 VDC units are suitable in battery backup systems and vehicular applications such as forklifts and moving guided vehicles
  • Easy access dome

Specifications

Amperage Rating:0.1 A
Average Life:4000 hr
Color:Amber
Country of Origin:US
Diameter:3-1/8 in
Dimensions:3.13 in W x 3.13 in D x 5.02 in H
Flash Rate:80 fpm
Housing Material:Polycarbonate
Lamp Type:Strobe Tube
Light Output:175000 cd
Mounting Type:T-Mount
NEMA Rating:4X/IP66/IP69K
Series:LP3T
Shape:Cylindrical
Specifications Met:ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed
Temperature Rating:-31 to 150 deg F
Voltage Rating:120 VAC
