Actual Product May Vary From Image

LP4-09-028 FSG

Name: LP4-09-028 FSG
Brand: Federal Signal
SKU: LP4-09-028 FSG
Price: 104.14 USD
Availability: InStock

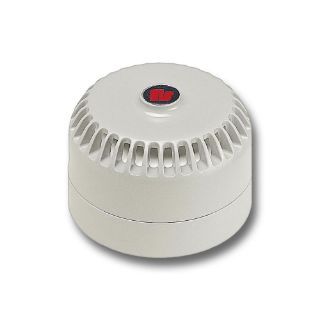

Federal Signal StreamLine® LP4-09-028 LP4 Low Profile Mini Sounder, 9 to 28 VDC, 3/33 mA, 32 Tones, 110 dB Sound, Indoor/Outdoor, Panel/Wall Mount, White, ARRA Compliant|BAA Compliant|CE Certified

Manufacturer: Federal Signal

Manufacturer part number: LP4-09-028

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$104.14

Qty:

Product Details

Brand Name

Federal Signal

Type

Low Profile

Alternate Supplier #

Grainger - 5LE16

Description

Federal Signal StreamLine® Mini Sounder, Low Profile, Series: LP4, 9 to 28 VDC, 3/33 mA, 110 dB, Indoor/Outdoor: Indoor/Outdoor, Specifications Met: ARRA Compliant|BAA Compliant|CE Certified, Panel/Wall Mount, -13 to 158 deg F Operating, 32 Tones, ABS, White, 3.66 in W x 3.66 in D x 3 in H

Application

For indoor/outdoor applications

Standards

RoHS Compliant

Features

PLC compatible with PNP or NPN connections
Choice of 64 selectable tones
105 dBA at 1 m, adjustable volume minimum of 65 dBA sound level
NEMA 3R/IP65 enclosure
Two input channels/32 unique tones
240 mA at 12 VAC/VDC, 280 mA at 24 VAC/VDC, 60 mA at 120 VAC, 35 mA at 240 VAC current rating

Specifications

Amperage Rating:	3/33 mA
Color:	White
Country of Origin:	GB
Dimensions:	3.66 in W x 3.66 in D x 3 in H
Indoor/Outdoor:	Indoor/Outdoor
Material:	ABS
Mounting Type:	Panel/Wall
Number of Tones:	32
Operating Temperature:	-13 to 158 deg F
Series:	LP4
Sound Level:	110 dB
Specifications Met:	ARRA Compliant\|BAA Compliant\|CE Certified
Voltage Rating:	9 to 28 VDC
